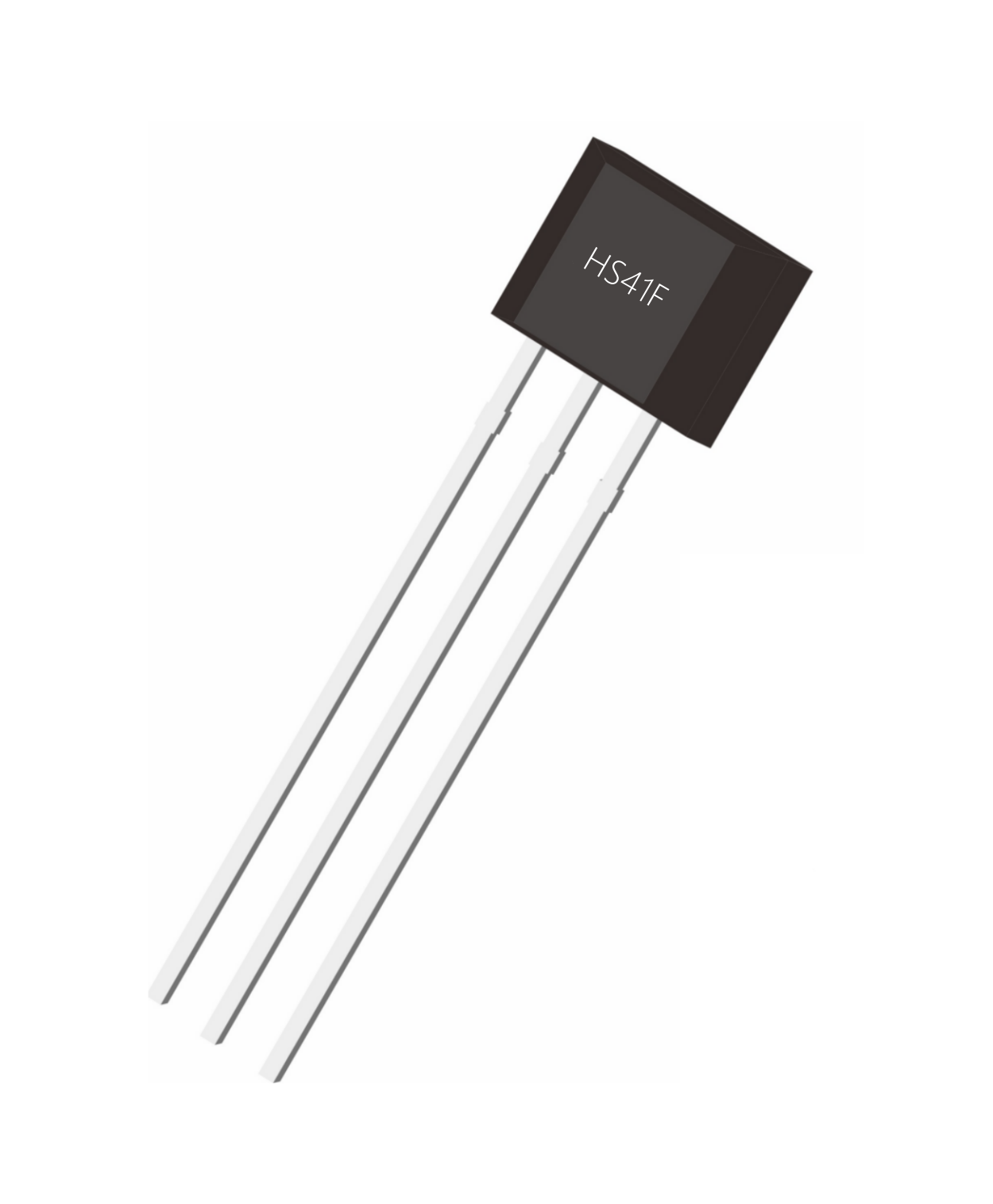

HS41F Bipolar Latch Motor Hall Sensor

HS41F high temperature bipolar latch type Hall effect position sensor is a magnetic sensing circuit composed of an internal voltage regulator unit, a Hall voltage generator, a differential amplifier, a temperature compensation unit, a Schmitt trigger and an open collector output stage. Its input is magnetic induction intensity and its output is a digital voltage signal.
It is a dual-pole magnetic sensing circuit suitable for working under rectangular or cylindrical magnets.
The operating temperature range can be from -40℃ to 150℃, the power supply voltage range is from 3.8V to 30V, and the load current capacity can reach up to 40mA.
The package form is SIP3L (TO92S).

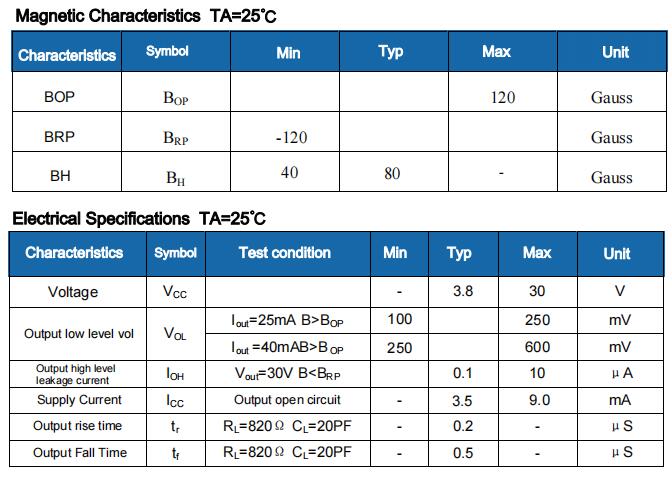

Product features

1. Wide power supply voltage range and large output current.
2. Fast switching speed, no instantaneous jitter.
3. Wide operating frequency (0~100KHz).
4. Long life, small size, easy installation.
5. Can be directly interfaced with logic circuits.

Main applications

1. Brushless DC
2. Motor position control
3. Automobile ignition
4. Isolation detection
5. Contactless switch
6. Current sensor
7. Safety alarm device
8. Speed detection
