Dongguan Hallsen Technology Co., Ltd
HS583 is a single pole latch type Hall effect sensor based on mixed signal CMOS technology. The device integrates a voltage regulator, a Hall sensor with dynamic bias compensation system, a Schmitt trigger, and an open drain output driver, all in one package.
This IC adopts advanced chopping stabilization technology, which can provide accurate and stable magnetic switching points. In addition to the applications listed below, this sensor has many other applications.Due to its wide operating voltage and wide temperature selection range, HS583 is very suitable for use in the automotive, industrial, and consumer industries.

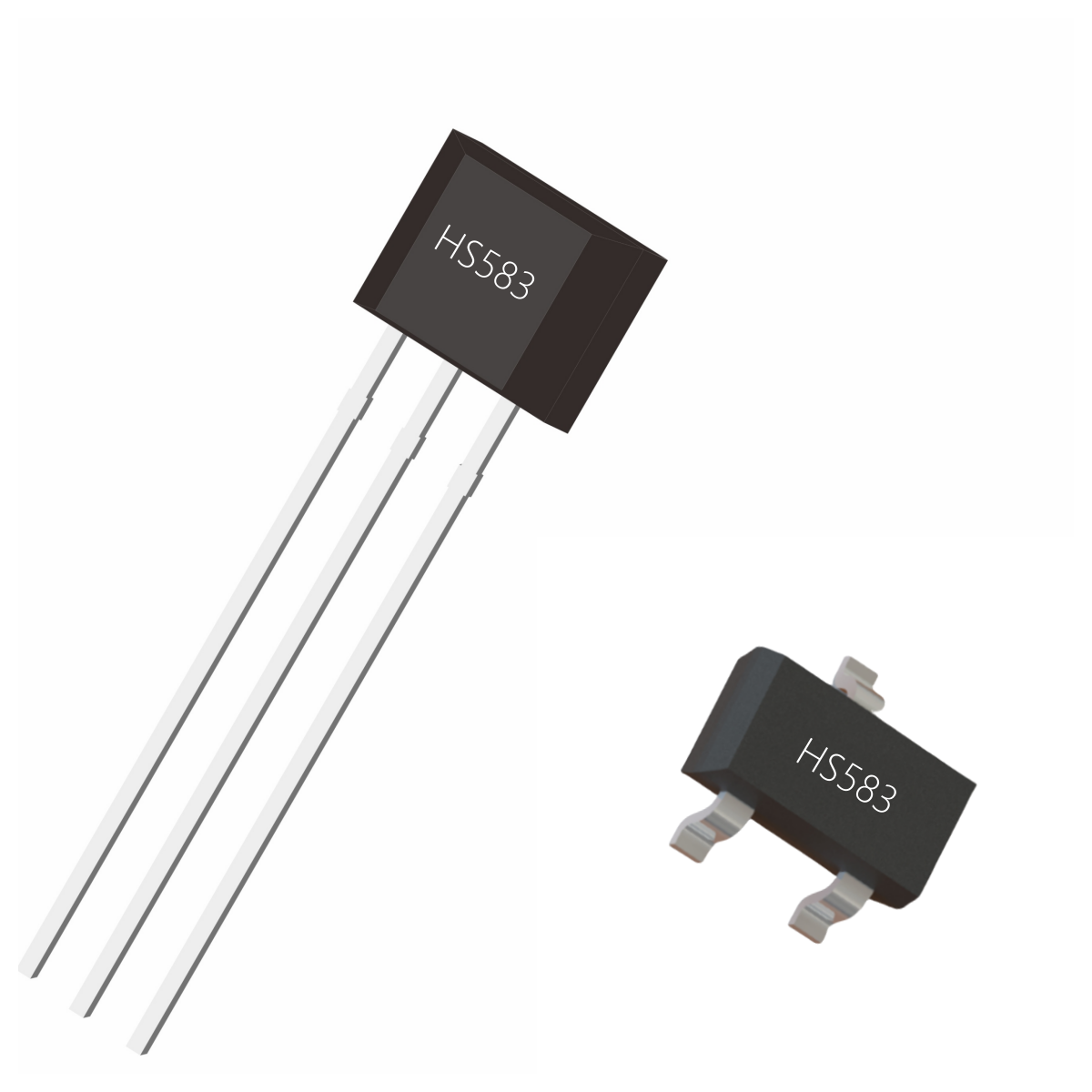

This IC comes in a SMT type SOT package and a single row inline TO-92S flat package that can be directly inserted. Both three pin packages comply with RoHS standards.
Product features
1. Wide operating voltage range: 3.5V ~ 24V
2. Low magnetic sensitivity
3. CMOS process
4. Stable chopper amplifier
5. Excellent temperature stability Very low switch point drift Insensitive to physical stress
6. Low current consumption
7. Open drain output
8. SMD SOT23-3L package complies with RoHS standards
2. Low magnetic sensitivity
3. CMOS process
4. Stable chopper amplifier
5. Excellent temperature stability Very low switch point drift Insensitive to physical stress
6. Low current consumption
7. Open drain output
8. SMD SOT23-3L package complies with RoHS standards
Main applications
1. Automotive, consumer, industrial solid-state switches
2. Circuit breakers
3. Speed detection
4. Linear position detection
5. Angular position detection
6. Proximity detection

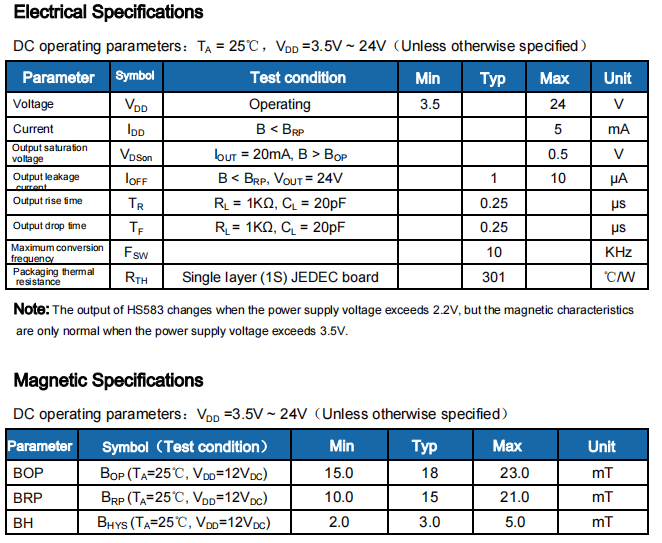

Product parameters
